Transparent PCB

Writer: Flex Plus Tech teamFlex Plus Tech team

Transparent PCBs are changing how electronics are made. They have both good functions and a vice look. These boards are made of special materials that let light go through. So, they work like normal PCBs in terms of electrical performance, and you can also see through them.

This feature is really useful in some areas. For example, in medical electronics, wearables, and optical devices. In these cases, you need to be able to see inside, have different design options, and still keep good performance.

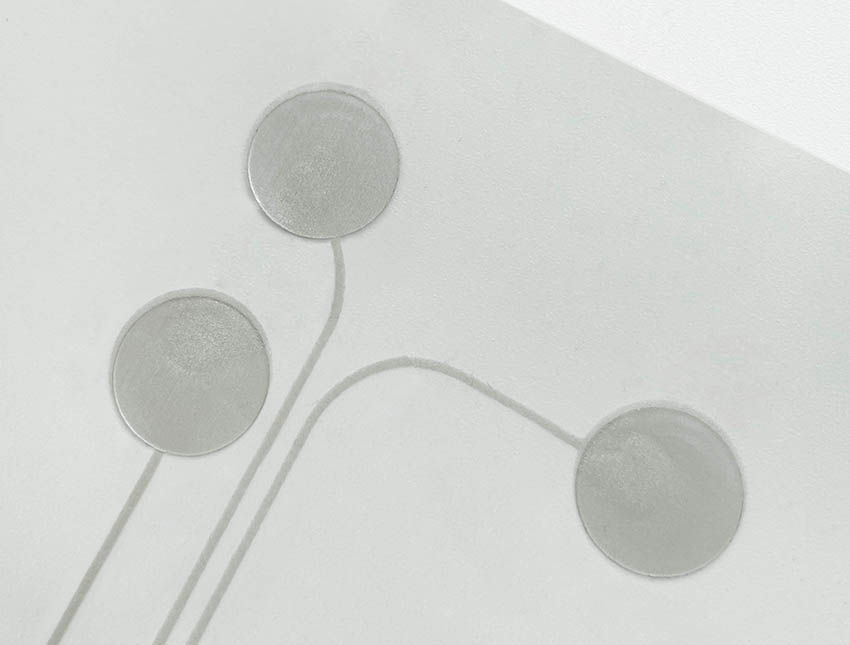

transparent flex PCB

Types of Transparent PCBs

Transparent PCBs can be divided into several types depending on the substrate material and its specific characteristics. Let's explore the most common options:

1. Glass

Glass is the clearest material available for rigid PCB substrates. It lets light pass through well and displays objects optically clearly. In addition, it can withstand high temperatures better than other materials. And it is very strong and can last for a long time even in very harsh conditions. It is often used in high-end medical devices, optical sensors, and advanced diagnostic tools where optical clarity and heat dissipation are critical.

Advantages:

  • High transparency and excellent optical performance.

  • High thermal stability, ideal for high-performance electronic applications.

  • High mechanical strength for durable applications.

Disadvantages:

  • More brittle than other materials and prone to cracking under mechanical stress.

  • Higher manufacturing cost.


2. Polycarbonate (PC)

Polycarbonate is a transparent and strong plastic. It is very good at withstanding impacts. It is more flexible than glass and can work well over a wider temperature range.

Advantages:

  • Strong and impact-resistant, more durable than glass.

  • More suitable for applications that require mechanical flexibility.

  • Lower cost compared to glass.

Disadvantages:

  • Slightly less transparent than glass.

  • Tends to yellow over time when exposed to UV light.


3. Polyimide (PI)

Polyimide is a flexible and high-temperature-resistant material. The color we often see is amber, but it can also be made transparent.

Advantages:

  • Excellent flexibility, making it an ideal choice for flexible transparent PCBs.

  • High heat resistance, suitable for high-performance applications.

  • Good electrical insulation properties.

Disadvantages:

  • Transparency is not as high as glass, but still quite good.

  • May be more expensive than polycarbonate.


4. Polyester (PET)

Polyester is a material that is not expensive and very light. If you want some affordable and lightweight PCBs, and you also need them to be a little flexible and transparent, then PET is a very good choice.

Advantages:

  • Make flex PCB board cheap and light.

  • Moderate transparency, suitable for less demanding optical applications.

  • Moderate flexibility.

Disadvantages:

  • Lower heat resistance and durability compared to other materials.

  • Transparency may decrease over time with UV exposure.

transparent flexible PCB

Which substrate material is best for flexible transparent PCBs?

When making flexible transparent PCBs, the material you choose is very important. It affects the flexibility and transparency of the board. When choosing the right substrate, there are the following main things to consider:

1. High flexibility and durability: Polyimide (PI)

Many consider polyimide to be the top material for flexible transparent PCBs. It is very flexible and the PCB can be bent and formed repeatedly without breaking. This makes it ideal for products such as wearable medical devices, flexible displays that need to bend, and so on.

2. Impact resistance: Polycarbonate (PC)

For applications where durability and impact resistance are more important than extreme flexibility, polycarbonate is a good alternative. It provides a good balance between optical transparency and mechanical strength.

3. Cost-effectiveness: Polyester (PET)

If cost is the main consideration and the device does not need to withstand excessive bending or high-temperature conditions, polyester may be an affordable choice for flexible transparent PCBs.



In summary, when choosing a transparent PCB material, you need to consider several factors, such as transparency, flexibility, durability, and heat resistance.


As a trusted flex PCB manufacturer, we specialize in providing high-quality flexible PCBs to meet the specific requirements of your project. No matter what kind of electronic device you are developing, we can help you choose the right material.
